LS6211 Output Power Adjustable Light Source
    Publish time 2021-12-07 16:02
LS6211 Output Power Adjustable Light Source

  LS6211 Output Power Adjustable light source has single or dual channel output and max 6wavelengths combination. It has a continuous 15dB adjustable power range and can choose single and double channels.


  It can automatically identify the wavelength when it is used with matched PM6111 series power meters, and they work together to measure the loss of optical fiber link easily and accurately.



 Features

  •   3.5-inch color screen

  •   Maximum 6 wavelengths combination

  •   Support for user self-calibration

  •  Wide output power range -5~-20dBm

  •   Continuously adjustable output power, 0.05dB step

  •   Automatic wavelength identification

  •   Optional 650nm Visual Fault Locator


Specifications

Model

LS6211

Wavelength(nm)

1310/1550（customize）

Spectral Width(nm)

≤5(customize)

Typical Output(dBm)

-5

Stability(dB,15min)1

≤0.05

Adjustable Output Power Range(dB)2

-5～-20

Min Adjustable Output Power Step(dB）

0.05

Modulation(Hz)

CW, 270, 330, 1K, 2K

Interface

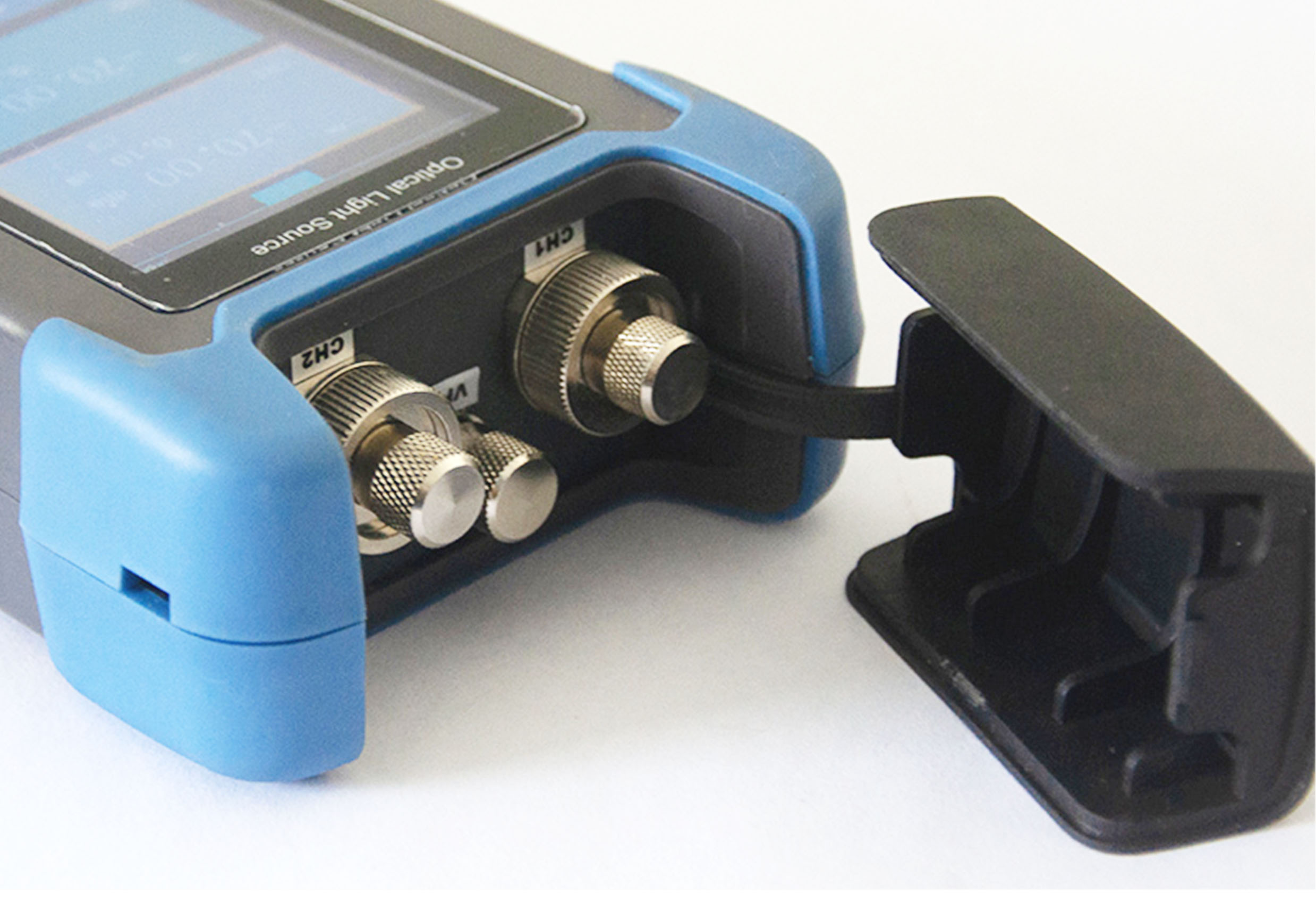

Interchangeable FC/SC/ST

Display

3.5-inch TFT color screen

Power Supply

3.7V 4000mAh lithium battery/Micro USB

Auto-off Time(min)

10

Communication Interface

Micro USB /USB-Type B(optional)

Continuous working hours(h)3

≥25

Operation Temperature(℃）

-10～+60

Storage Temperature(℃）

-25～+70

Dimension(mm)

188×88×44

Weight(g)

400

Notes:

* : the related technical indexes were tested at T = 23 ± 2 °C.

1. The instrument was preheated for 15 min by 1550 nm light source.

2. Testing at@1550nm.

3. The continuous working time of the battery is tested when the backlight of  the meter is turned off,and the continuous working time of the continuous working time of the backlight of the meter is relatively shortened.
