FMC-1600-220 Series 16-Slot Media Converter Rack Chassis is a standard 2U19-inch, centrally-powered fiber optic transceiver system. This Rack Chassis equipped with the main and backup power supply; can be inserted 10/100M series, 10/100/1000M series fiber optic transceiver modules and single-mode converter module and 1 fiber port & 1 RJ45 port fiber switch, and support for hot-swappable. The Media Converter chassis adopts communication isolation technology to separate the power supply from the transceiver module completely, to ensure the reliability of the whole system .

Features

• The configuration of main and backup power supply ensures uninterrupted work of the system;

• AC220V and DC-48V two kinds of power supply to make the system suitable for a variety of work environments;

• Adopting modular power supply is easy to maintain and has good shielding effect;

• Support multiple modules to work at the same time, greatly improving the system's applicability;

• Each module supports hot swap function;

• It is suitable for telecommunication, CATV, Ethernet optical fiber data centralization and network management;

• Requiring high performance network security protection system;

• The functional modules in the 16-slot rack are interchangeable with the structure of the plug-in built-in power supply products;

• The chassis structure is designed with 2U standard, which can be easily installed on the rack of the engine room, and dual fan exhaust have good heat dissipation performance;

• Meet the electromagnetic interference standard FCC Part15 Class A and CE Mark safety regulations

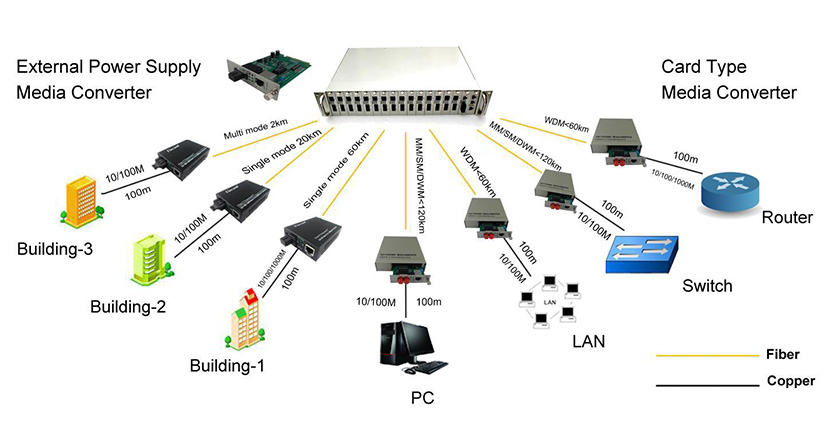

Applications

Specifications
