MPO Bundled Patchcord
    Publish time 2017-02-24 10:41

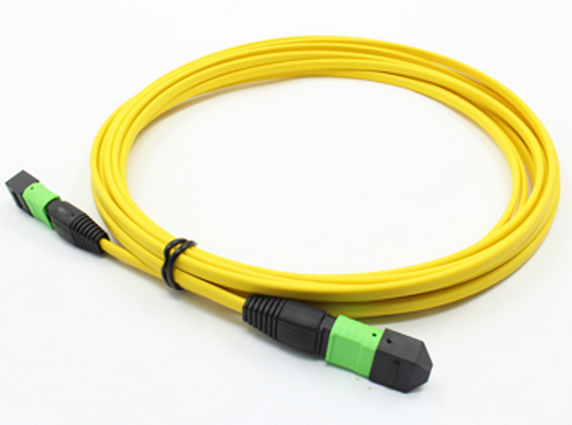

MPO Bundled Patchcord

MPO (Multi-fiber Push On) is collectively referred to as MT series connectors, MT series of in core are used in core end surface of the left and right with a diameter of 0.7mm guide hole and guide pin (also called pin) for precise connection. MT-RJ is generally two core design, MPO has  2 to 12 core design, Maximm is 24 core, the most common used is 12 core. MTRJ myeloperoxidase (MPO) design make the core and volume small, widely used in the routing process to high density integrated optical fiber line environment, FTTx 40/100GSFP,SFP+ ect…internal application.

We can provide variety of direct or hybrid MPO patch cords with ribbon, bundled or branching 0.9 or 2.0mm cable, make them 2~24 core branch.Customers could define the connector type,length and other requirement as per the application needs.


Features
  • Good interchangeability
  • High return loss
  • High quality ferrule
  • RoHs compliance
  • Telcordia GR-326RCORE standard

Specification

Connector Type

MPO,MTP,FC

Fiber Type

SM(Angled)

MM(Flat)

Working Wavelength(nm)

1250~1650

850/1300

Test Wavelength(nm)

1310/1550

850/1300

Fiber End-face

MPO:APC;MTRJ:PC

PC

Typical Insertion Loss(dB)

≤0.5

≤0.4

Max Insertion Loss(dB)

≤0.7

≤0.5

Return Loss(dB)

≥50

/

Applicable Cable Type

MPO Bundle or Ribbon Cable

Repeatability(dB)

≤0.1

Interchangeability(dB)

≤0.2

Durability

Typical changing value ≤0.2 every 500 times pulling

Tensile Strength

≥120N(Except of 0.9mm cable)

Working Temperature (℃)

-20~+70

Storage Temperature (℃)

-40~+85
