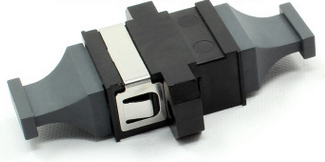

MPO Adapter
Publish time 2017-02-23 21:06
Features
- Good repeatability
- Low insertion loss
- High reliability
- ROHS compliance
|
Connector |
MPO |
|
Color |
Black |
|
Test Wavelength(nm) |
1310/1550/850/1300 |
|
Typical Insertion Loss(dB) |
≤0.20 |
|
Max Insertion Loss(dB) |
≤0.30 |
|
Repeatability(dB) |
≤0.1 |
|
Interchangeability(dB) |
≤0.20 |
|
Durability |
Typical changing value ≤0.2 every 500 times pulling |
|
Material |
Plastic |
|
Working Temperature(℃) |
0~+70 |
|
Storage Temperature(℃) |
-40~+85 |
