BLS3203 CWDM Light Source
    Publish time 2017-02-21 09:41

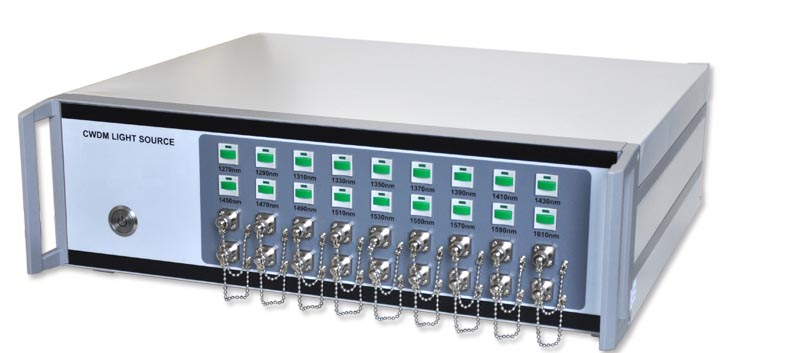

BLS3203 CWDM Light Source


BLS3203 series CWDM is specially designed for CWDM system. it can be customized with different laser (DFB or FP), wavelength and output power. And each channel could be separately controlled.

Features

1.        High stability and reliability

2.       High output power

3.       Individual control of each wavelength

4.       Easy operation and long lifespan

5.        Different output power available

6.       Different connector available

7.        Different emitter available


Specifications

Model

BLS3203

Wavelength(nm)

1270,1290,1310,1330,1350,1370,1390,1410,1430,

1450,1470,1490,1510,1530,1550,1570,1590,1610

3dB Bandwidth(MHz)

≤10MHz

Standard Output  Power(mw)

2

Short-term Stability

≤±0.01dB/5min

Long-term Stability

≤±0.02dB/8hour

Working Mode

CW

Pigtail Type

SM-28 Fiber

Output Connector

FC/APC

Working Temperature

0℃~40℃

Storage Temperature

-20℃~70℃

Working Power

AC 90~260V (50Hz)
