VFL6504 Visual Fault Locator
    Publish time 2017-02-16 13:56
VFL6504 Visual Fault Locator

VFL6504 Series Pen Style Visual Fault Locator provides a stable visible red light for users to easily locate fiber faults, broken
or micro-bend in installation or maintenance of optical network. With the modulation function, it is also applicable for end to
end fiber identification.

Features

  • Constant and stable output power

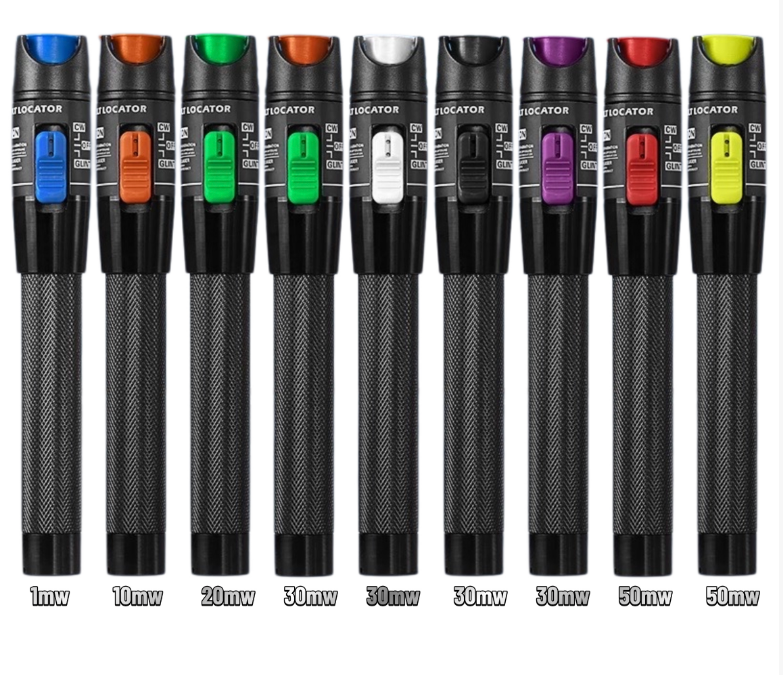

  • Different output power available

  • CW or 2Hz modulated signal

  • Low battery warning

  • Up to 50 hours battery life

Specification

Model

VFL6504

Central Wavelength (nm)

650±10

Emitter

FP-LD

Output Power (mw)

1/10/20/30

Optical Connector

2.5mm universal

Modulation (Hz)

CW/2

Battery

AA (2pcs)

Operating Time (h)

>50

Operating Temperature (℃)

-20~+60

Storage Temperature (℃)

-40~+60

Dimension (mm)

￠25*175

Weight (g)

100 (excluding battery)
