Optical Loss Tester LT6302
    Publish time 2016-04-06 21:51

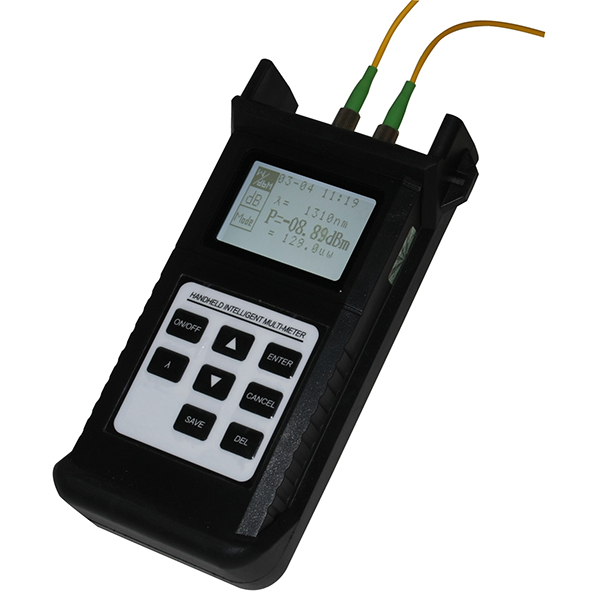

Optical Loss Tester LT6302
LT6302 series loss tester integrates power meter and light source function in one unit.
It can work as power meter and light source separately or work as loss tester together.

As a light source, it can provide dual wavelength output for SM or MM, and continuous or modulation signal.
As a power meter, it is calibrated at 6 wavelengths and has data storage, data uploading function via RS232 cable and frequency identification function.

Features
  1. Power meter plus light source in one unit
  2. Large LCD screen
  3. Frequency identification
  4. Data storage or upload via RS232
  5. 10 minutes Auto-Off function
  6. Lower power indication
Specification

 Model

 LT6302T

LT6302C

 Power Meter

Measurement Range (dBm)

-70~+6

-50~+26

Calibration Wavelength (nm)

850/1300/1310/1490/1550/1625

Connector

FC / PC

Uncertainty (dB)

± 0.22

Linearity

0.03

Resolution

0.01

Tone Detection (k)

10~60

 Light Source

Emitter

FP-LD

Wavelength (nm)

850/1300 or 1310/1550

Connector

FC/PC

Stability (dB, @1hour,20℃)

±0.05

Output Power (dBm)

-6~-7

Modulation (Hz)

270, 1K, 2K

 General Information

Auto-Off Time (Mins)

10

Battery

Lithium Battery

Power Adapter (V)

8.4

 Operating Time (h)

28 for OPM; 6 for OPM & OLS work together

 Operating Temperature (℃)

-10~+60

 Storage Temperature (℃)

-25~+70

Dimension (mm)

180x90x37

Weight (g)

350 (including battery)
